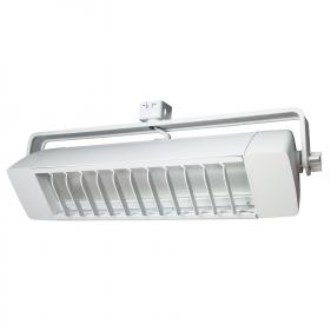

Linear Wall Lighter LED Track Luminaire, Swivel Connector (CTL17 S Series)
• High lumen output with excellent uniformity; well suited for any wall lighting application
• Extruded, finned aluminum housing with heat sink and cast aluminum end caps
• Specular reflector is constructed of 98% efficient Alanod, specifically designed for use with LEDs
• Solite Tempered Glass Lens for diffusion and blending the LEDs
• A single track connector and a heavy duty mounting yoke provide 360° horizontal rotation and 180° vertical adjustment with locking adjustment knobs
• Light Engine consists of a linear PCB with 22 CREE XT-E high brightness LEDs
• Select from 2700K, 3000K and 3500K color temperatures; CRI of 80 min., 83 typical
• Excellent fixture-to-fixture color consistency with a 4-step MacAdam Ellipse tolerance
• Dimming is standard, allowing continuous illumination down to 10%
• Optional louver provides excellent cutoff and glare control
• Integral ON/OFF switch and track polarity indicator are standard
• cCSAus Certified to UL standards on base models
• Suitable for dry locations
• ENERGY STAR® Certified
Length 508 mm
Height 149.2 mm
Lamp Technology LED
Beam Angle / Distribution Medium
Finish Black | White | Silver
Voltage 120 V
Watts 40 watt | 56 watt
Color Temperature 2426.85 °C | 2726.85 °C | 3226.85 °C
Lumens 2001 Lumens to 3000 Lumens | 3001 Lumens to 4000 Lumens
CRI (Color Rendering Index) 83
Input Frequency 50/60Hz
Dimming / Dimmer Incandescent (Forward Phase) or Electronic Low Voltage (ELV)
Warranty (5) year replacement after date of purchase
Accessories Black Snap-In Louver | White Snap-In Louver | Silver Snap-In Louver
