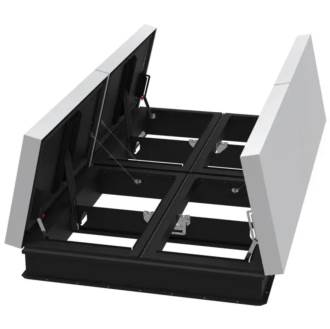

Quad Door AcousticMAX™ Z
Block the intrusion of exterior environmental noise while providing safety and security with the industry’s best OITC 47-STC 50 automatic Acoustical Smoke Vent.
Model BSVZ
Door Type Quad Door
Material 12 gauge galvanneal steel
Finish Inside: Powder Coat, Black | Outside: Powder Coat, High Reflectance White
Door Cover Metal with liner, withstands a live load of 40psf
Curb Type Double wall curb with easy tab counterflash and mounting flange
Insulation Mineral wool with sound mat in cover and curb
R-Value 16.8
Hardware Included Stainless steel heavy-duty pintle hinge | Gas spring with damper open cover against 10psf load | Zinc plated hold open arm
Latch Type Zinc plated steel rotary latch designed to hold covers closed against 90psf wind uplift
Width 1219.2 mm to 96 mm
Length 1828.8 mm to 192 mm
Warranty 5 years
