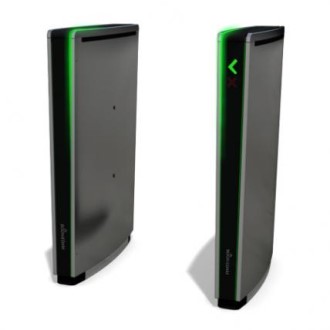

Speedlane Open

The Intuitive Speed Gate
As pedestrian mobility increases so does the need for a sophisticated, intuitive, refined and yet secure entry management experience for those entering and moving around buildings. The Speedlane Slide interacts with those who approach it, managing and guiding authorized users through to the secured areas of buildings.

Part of the Lifeline series, the Speedlane Slide has been designed to the highest standards, ahead of industry trends:

using unique sensors which detect visitors approaching
a sleep function to save energy
pulsing light strips to guide the user
intuitive and proven symbols to make it user friendly
ergonomic design for customer comfort
customization possibilities in fitting with interior design
premium quality materials
Customization

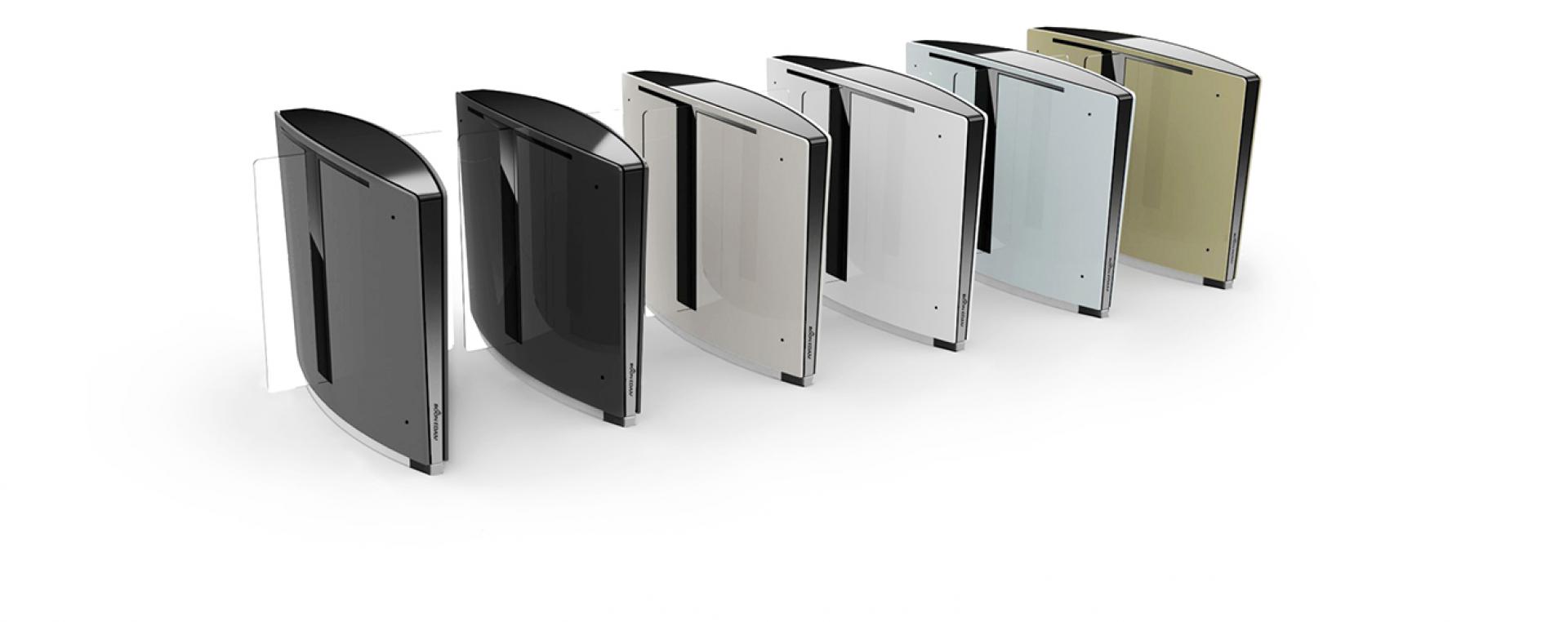

The Speedlane Slide is available with a whole array of dimensional and glass choices. Whether it’s for a higher security level or disabled access, every combination is possible. The distinctive black glass top instantly gives an air of sleek design, while the finish of the cabinet can be customized to the latest design trends, offering the opportunity to blend-in or stand-out from its surroundings. Whether making a statement, fitting with corporate identity colors or creating a harmonious interior design, the Speedlane Slide makes a design statement in its own right.

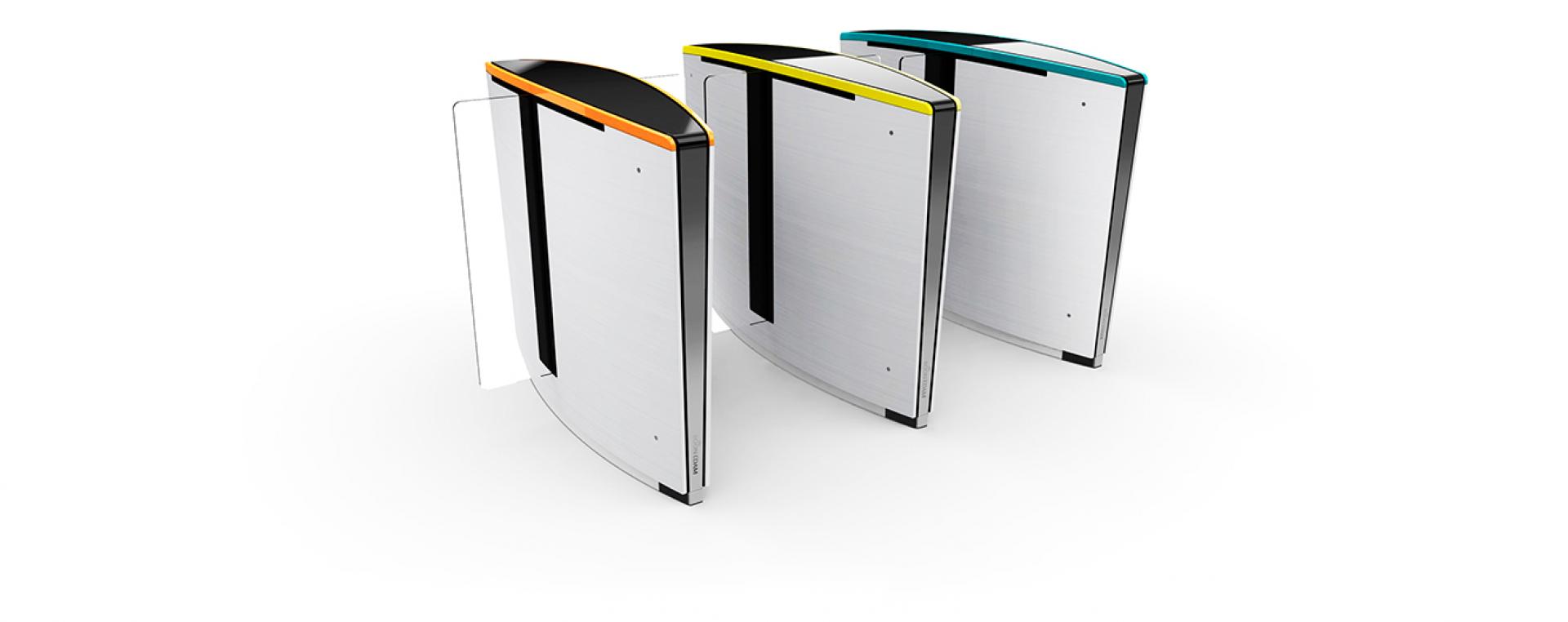

In fitting with the latest design trends, the Speedlane Slide is available with the current trending color finishes:

Business
Elements
Expressions


Options
Single lane or multiple lane set-up
Jump over detection sensors
Barrier free mode
Fail secure mode
External control panel
Blog: 5 Optical Turnstile Enhancements for Workplace Violence Prevention
Workplace violence negatively impacts productivity and morale. Discover 5 enhancements you can make to your optical turnstiles to maximize security and deter workplace violence.

Disabled Access Yes
Standard Features Sleep Function
Options Barrier Free Mode | External Control Panel | Jump Over Detection Sensors | Custom Finishes Available
Pedestrian Throughput (People Per Minute) 25 to 30
Power Supply 110-240 VAC, 50/60 Hz
Power Consumption (Operating) 80 watt
Power Consumption (Stationary) 60 watt
Fail Safe / Fail Secure Fail Safe | Fail Secure
Barrier Height 38 9/16" | 39 1/4" | 39 3/8" | 47 1/4" | 70 7/8"
Barrier Material Glass
Width 12 1/4" | 20 1/8"
Direction Bi-Directional
Cabinet Finish Stainless Steel | Custom Finishes Available
Top Surface Finish Black Glass
Height 40 3/4"
Length 4' - 8 11/16"
Passage Width 20" to 36"
Detection IR Optical Beams
Number of Door Wings 2
Power Consumption (Sleep mode) 40 watt
